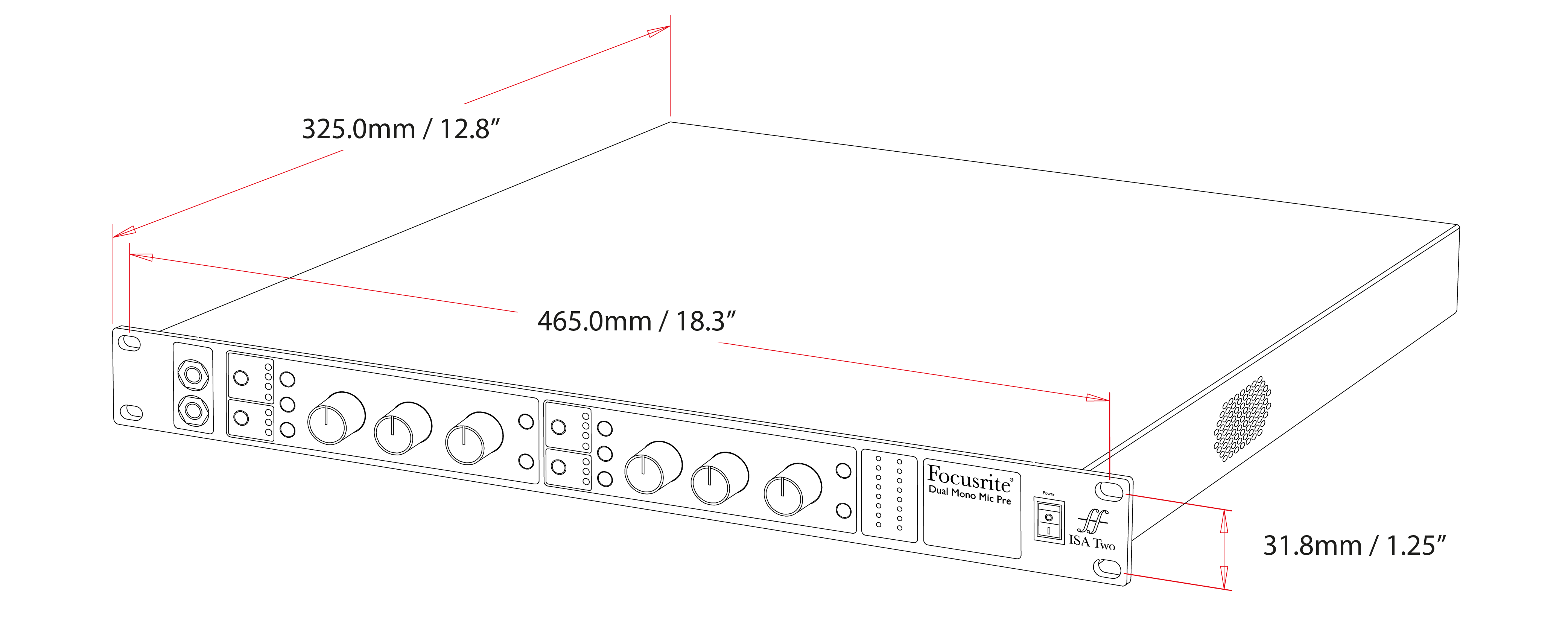

ISA Two dimensions are illustrated in the diagram above.
The measurements above show the spacings for rack mounting your ISA Two. For the physical dimensions of your ISA Two, see Performance and Specifications.
ISA Two requires 1U of vertical rack space. Allow an additional 75mm of rack depth behind the unit to allow for cables.
ISA Two weighs 3.7 kg / 8.12 lbs and for installations in a fixed environment (eg., a studio rack), the front-panel rack mountings* will provide adequate support. However, if the unit is to be used in a mobile situation (eg., flight-cased for touring, etc.), it is recommended that side support rails or shelves are used within the rack.
Important
*Always use M6 bolts and cage nuts specifically designed for 19” equipment racks. An Internet search using the phrase “M6 cage nuts“ will reveal suitable components.
Cooling vents are provided at each side; ensure that when mounted in a rack these vents are not obstructed. Do not mount the unit immediately above any other equipment which generates significant heat, for example, a power amplifier.
Note
The maximum operating environmental temperature is 40°C / 104°F.
ISA Two is mains-powered. It incorporates ‘Universal’ power supplies which can operate on any AC mains voltage from 100 V to 240 V. The AC connections are made via standard 3-pin IEC connectors on the rear panel.
A mating IEC cable is supplied with each unit – this should be terminated with a mains plug of the correct type for your country.
The AC power consumption of the ISA Two is 35 W.
Note
There are no fuses in ISA Two or other user-replaceable components of any type. Please refer all servicing issues to the Customer Support Team (see Customer Support and Unit Servicing).
