Thank you for purchasing the Focusrite RedNet 6/D64R.

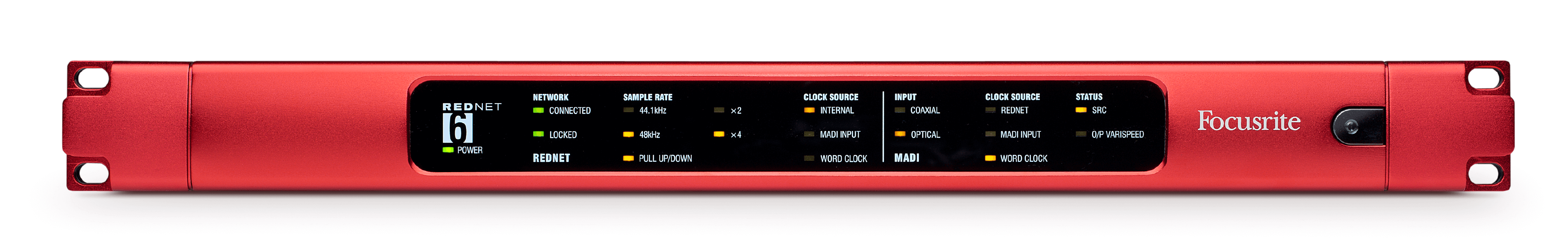

RedNet 6

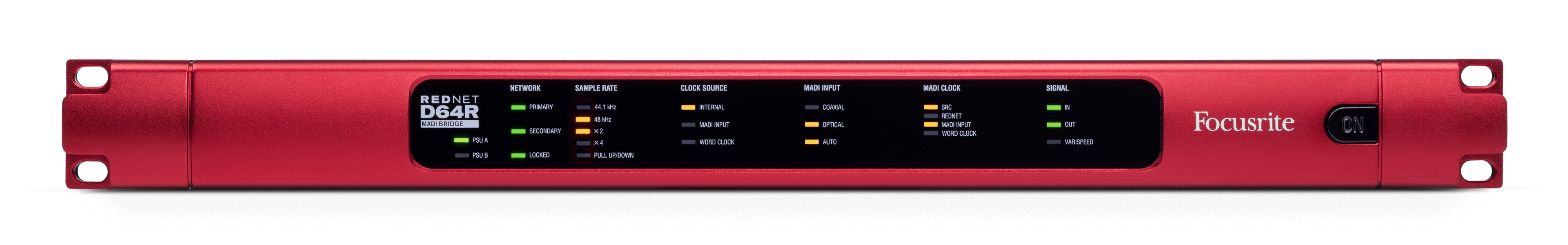

RedNet D64R
RedNet 6/D64R MADI Bridge is a 1U 19in rack-mount unit that provides an interface between any MADI (AES10) device and the RedNet Ethernet audio system.
Support for up to 64 channels of digital audio I/O at standard sample rates (44.1/48kHz) from a MADI system – 32 channels at 96kHz and 16 at 192kHz.
D64R:
Dual Ethernet connectors (primary and secondary) on the rear-panel allow maximum network reliability with seamless switchover to a standby network in the unlikely event of a network failure. These ports may also be used to daisy-chain additional units when operating in Switched mode.
Redundant power supplies (PSU A and B) with separate input sockets on the rear panel allow one supply to be connected to an uninterruptible source. Each PSU’s status can be monitored remotely over the network or from the front panel.
The MADI connection can use both BNC coax and standard duplex fibre interfaces.
A Sample Rate Converter (SRC) on each input and output allows instant operation with any MADI source, irrespective of the sample rate or clocking of the Dante audio network.
Word Clock I/O on BNC connectors allows synchronisation of the Dante network or the MADI stream to house clock, plus syncing external equipment to the Dante network.
The front panel contains a set of LEDs to confirm network status, sample rate, clock sources and MADI interface settings.
