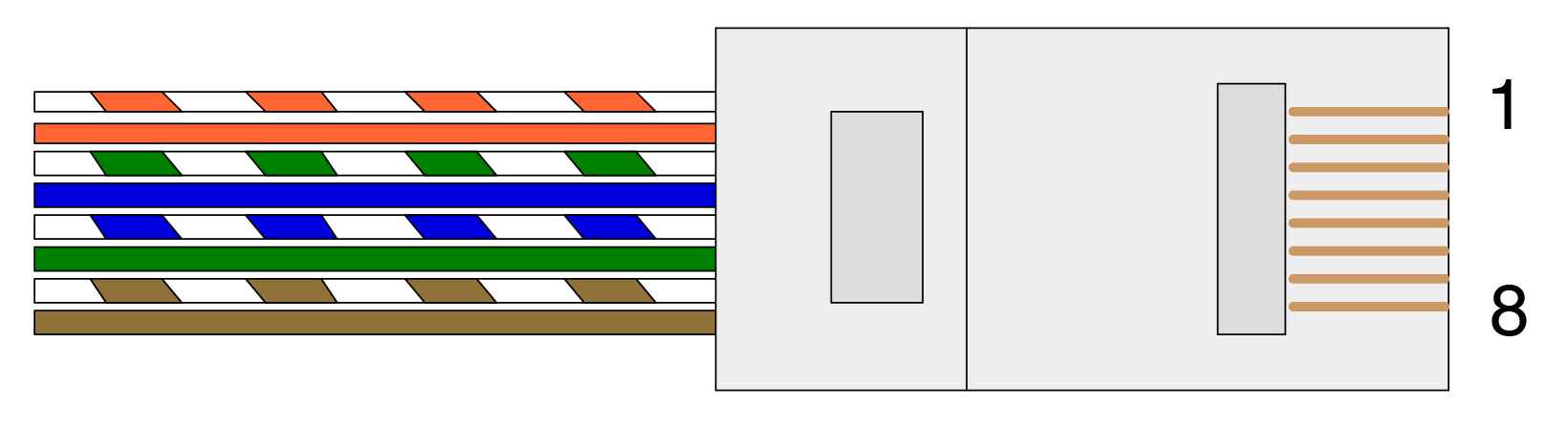

Appendix 10 December 2024 14:34 Updated Connector Pinouts Ethernet Connector Pin Cat 5/6 Core 1 White + Orange 2 Orange 3 White + Green 4 Blue 5 White + Blue 6 Green 7 White +Brown 8 Brown Related articles About this User Guide Performance and Specifications Other RedNet System Components Notices
