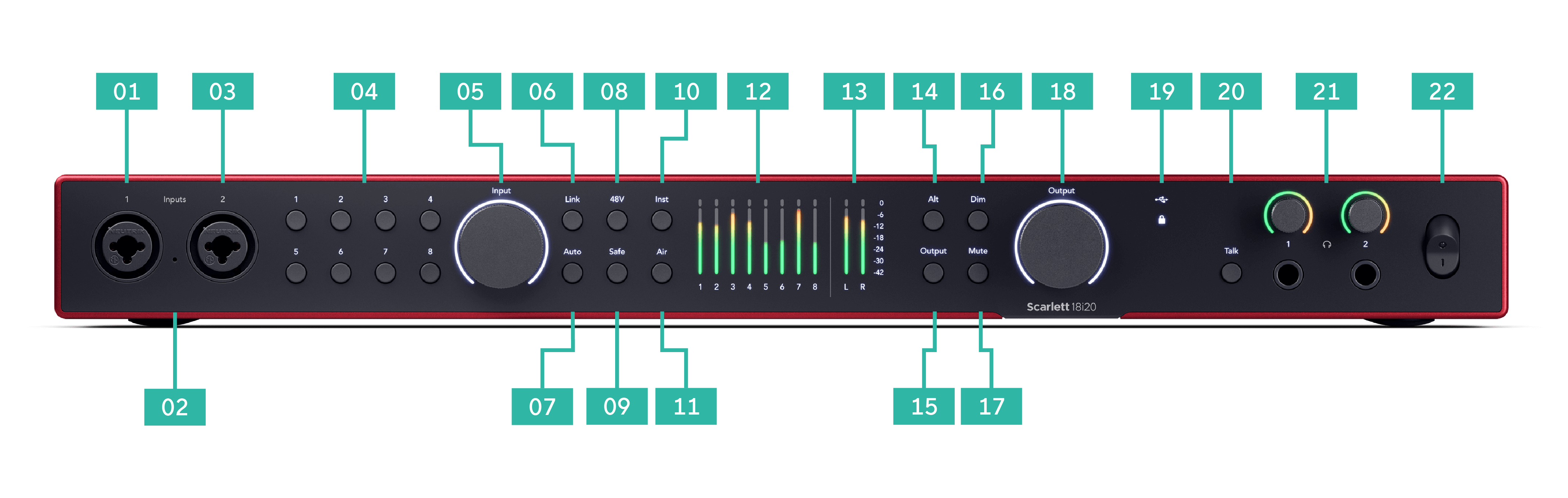

Input 1 Neutrik® Combo XLR and 6.35mm (1/4") jack connector. Accepts XLR mic-level inputs, or unbalanced mono (TS) and balanced Mono (TRS) 1/4" jack cables at line or instrument-level.
-
Talkback mic - the talkback microphone location.
-
Input 2 Neutrik® Combo XLR and 6.35mm (1/4") jack connector. Accepts XLR mic-level inputs, or unbalanced mono (TS) and balanced Mono (TRS) 1/4" jack cables at line or instrument-level.
-
Select 1–8 buttons - Press to select one of the eight preamps to control its preamp settings and input gain. The currently selected channel's number lights green.
-
Input gain control - The gain control sets the input level for the selected preamp.
-
Link button - Press to create a stereo pair of input channels. (See Link).
-
Auto button - Press to start the Auto Gain feature (see Auto Gain).
-
48V button - Press to turn on 48V phantom power at the XLR mic input to power condenser microphones.
You can set 48V independently per preamp channel.
-
Safe button - Press to turn on the Clip Safe feature for your input (see Safe).
-
Inst button - Press to toggle the selected 6.35mm (1/4") input between Line or Instrument level.
-
Air button - Press to turn on AIR mode (see AIR).
-
Meters 1-8 - eight meters show the signal levels of the eight analogue inputs or outputs. The meters align with the scale on the far right, from -42 to 0 dBFS. Press the Output button to change the meters from input to output.
In input mode, if a meter lights red, it's hit 0dBFS, and you should turn the Input gain down for that channel to avoid clipping.
-

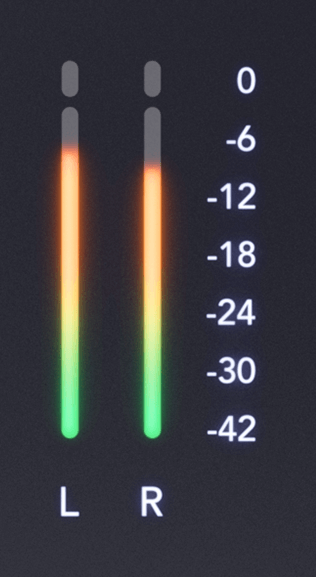

L and R meters - two meters to show the level being sent out of the monitor outputs.
-
Alt button - press the Alt button to route the signal going to the first monitor output pair (1 and 2) and the second monitor output pair (3 and 4). To use two pairs of monitors and switch between them, see Alt.
-
Output button - Changes meters 1-8 to show the Output metering for Outputs 3-10 (Outputs 1/2 still appear on the L and R buttons).
-
Dim button - reduces the output level being sent to your outputs by 18dB.
-
Mute button - silences the signal being sent to your outputs.
-

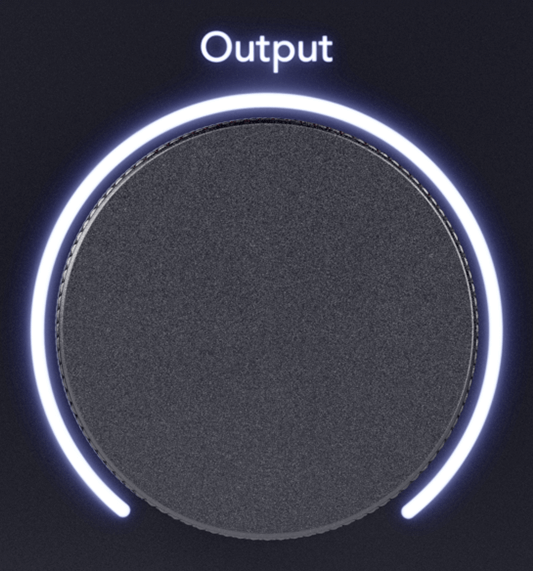

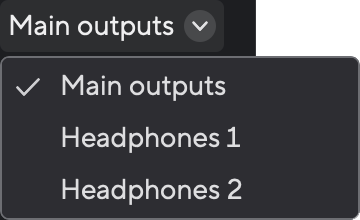

Main Speaker Output Control and Output level meter - By default, control the level going to Outputs 1 and 2. The meter shows where your Output control is set. You can configure Output to control more outputs.
-
Status icons
-
USB LED - Lights green when your computer recognises your Scarlett, and white if it is disconnected from your computer (in standalone mode).
-
Sync Status - Lights green when your Scarlett 18i20 is synchronised with itself or an external digital device. It lights white when it can't lock. For more information, see the Sync Status section.
-
-

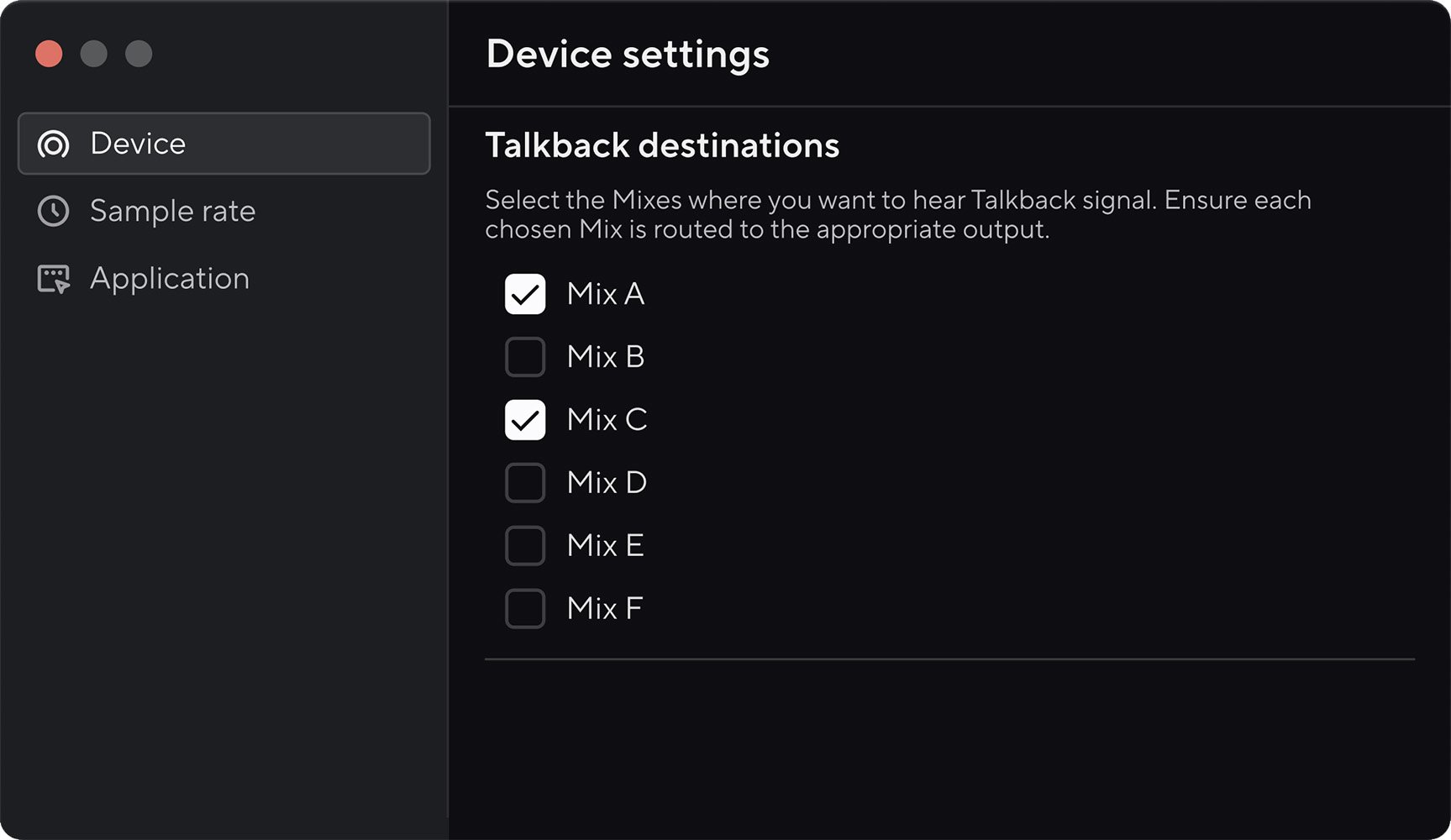

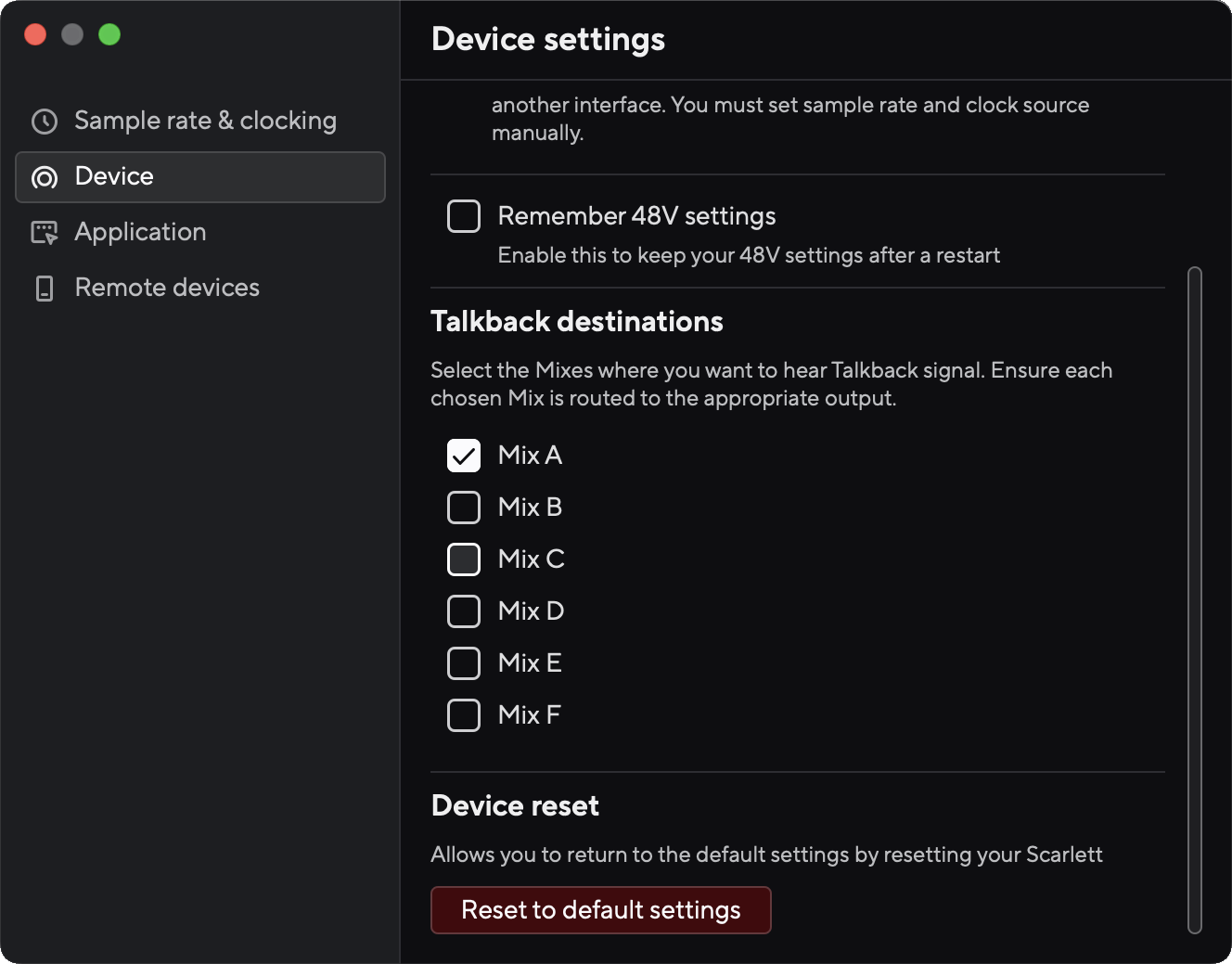

Talk - hold Talk to activate talkback. When active, Talk lights green, and the talkback mic routes to various outputs, e.g. headphones to speak to your musicians.
-

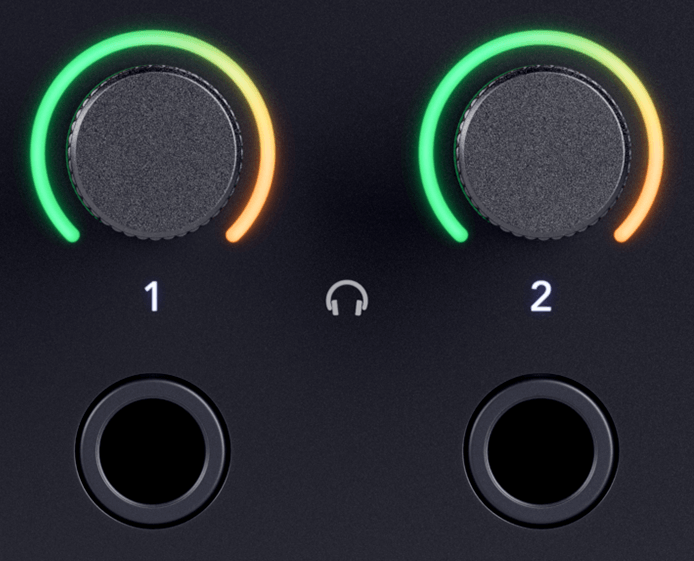

Headphone level control and output sockets - Connect up to two sets of headphones to the output sockets and control the output with the corresponding level control.
-

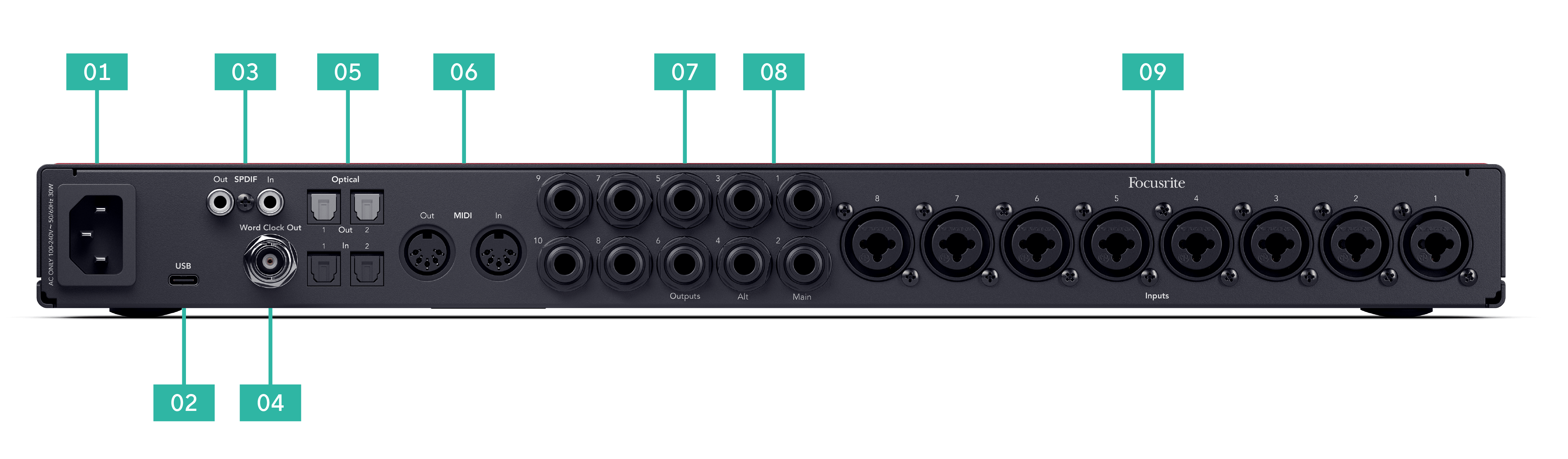

Power switch - O is the off position, I is the on position.
-
Power input - A standard IEC power input.
-
USB - USB-C connector to connect your Scarlett to your computer.
-
S/PDIF Out and In - two coaxial RCA sockets for two-channel S/PDIF digital audio signals in and out. See Sync Status and using your Scarlett with ADAT and S/PDIF for information on how to set up your Scarlett 18i20 with a S/PDIF device.
-
Word Clock Out - a BNC connector carrying a word clock signal to synchronise other digital audio equipment.
-

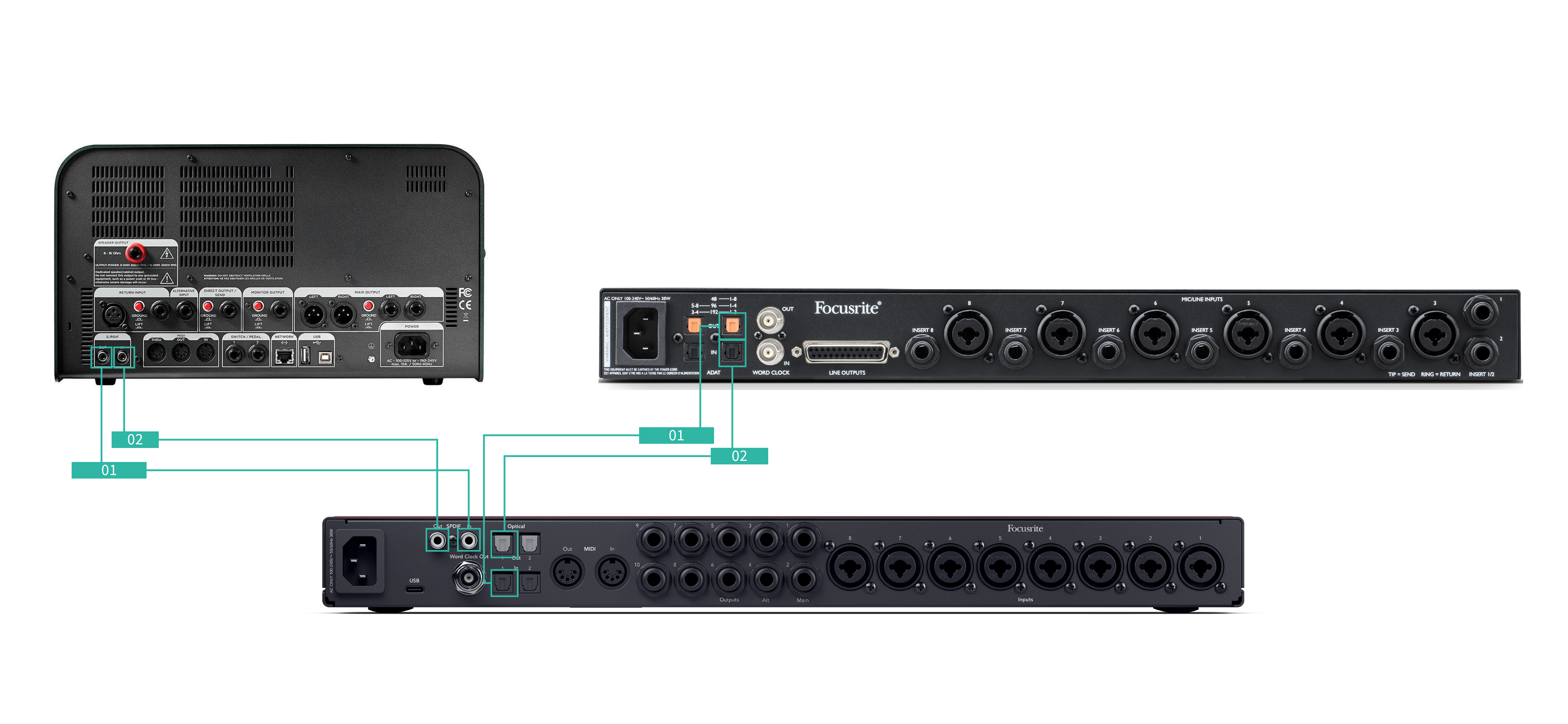

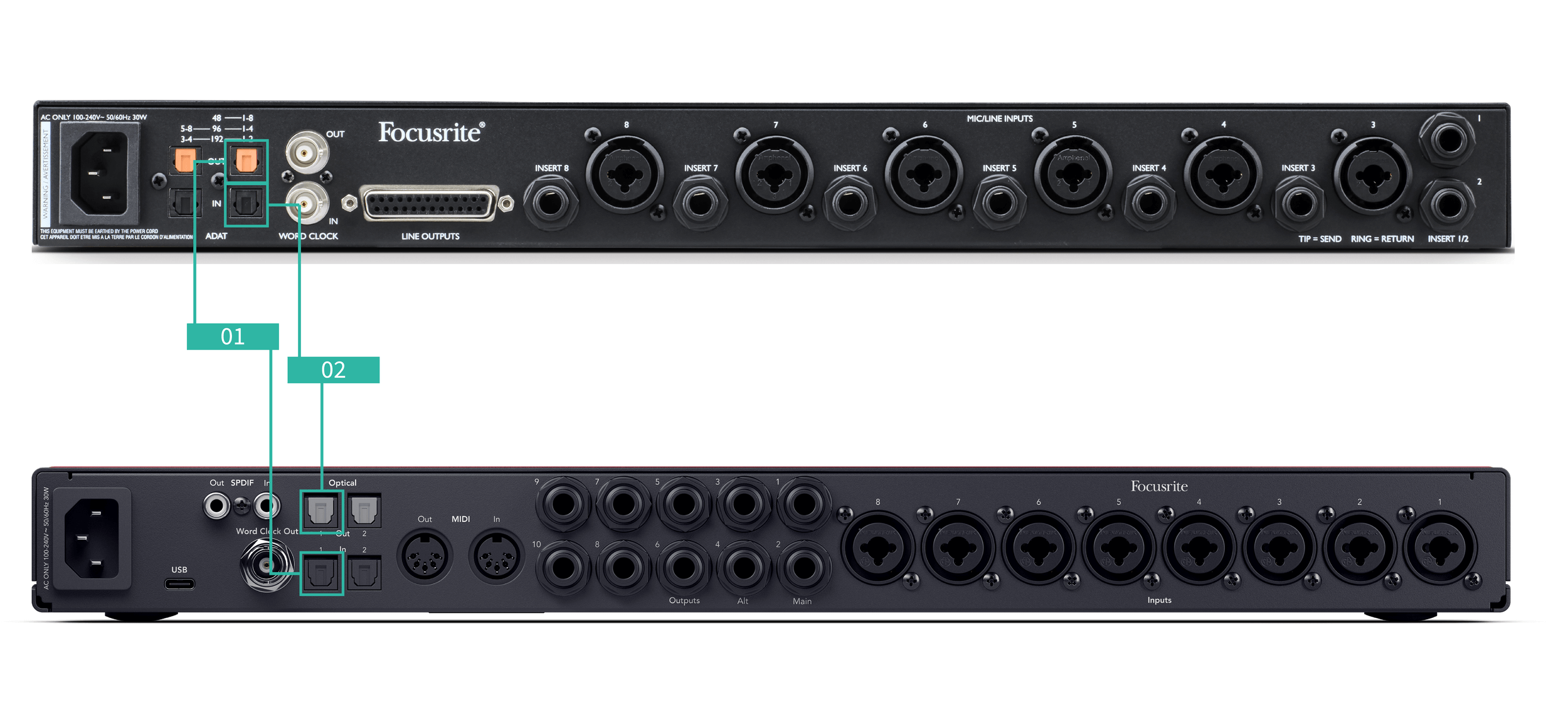

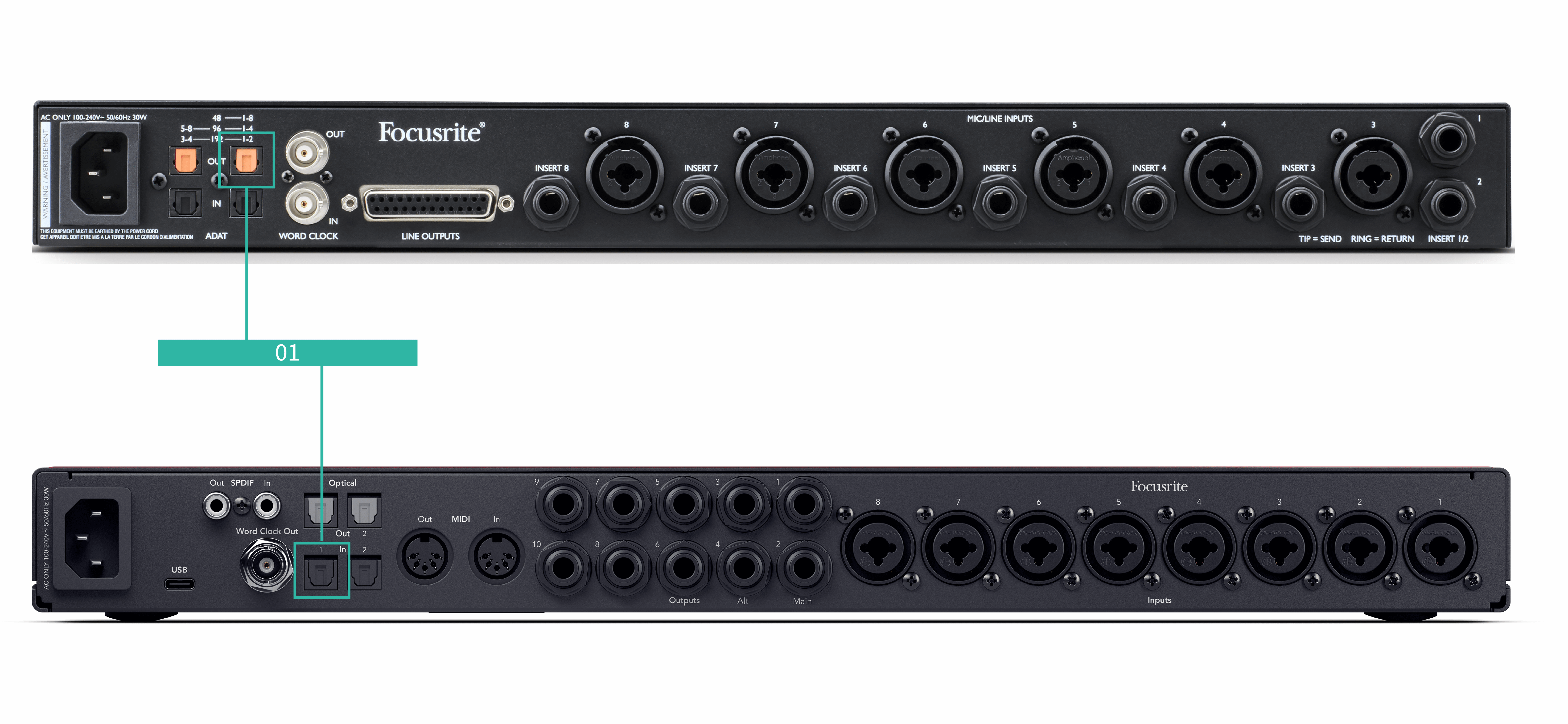

Optical Out 1/2 and In 1/2 - four TOSLINK connectors for eight channels of digital audio in and out, in ADAT format.
-

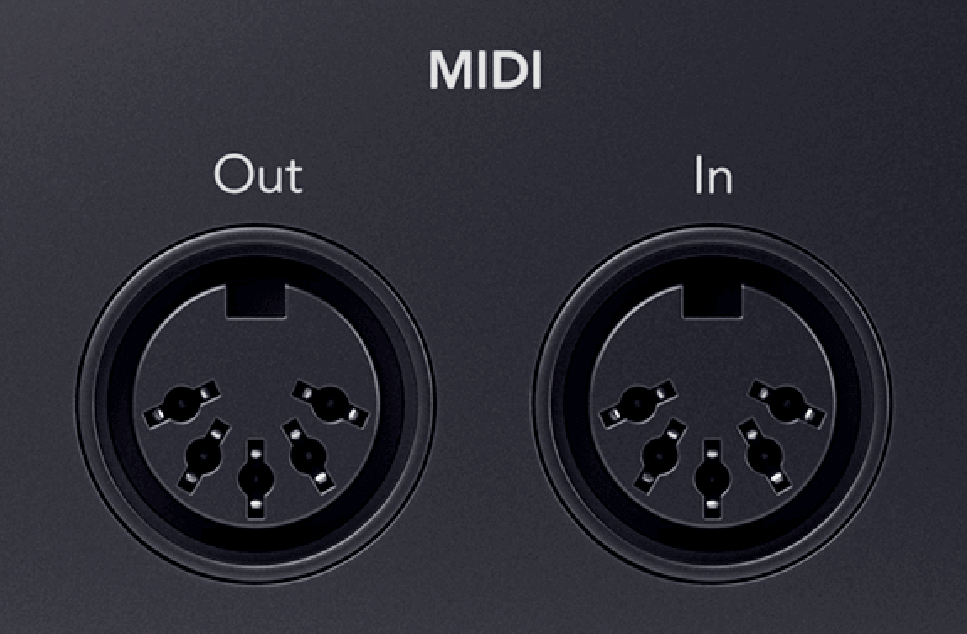

MIDI Out and In - standard 5-pin DIN sockets for external MIDI equipment. The Scarlett 18i20 acts as a MIDI interface, allowing MIDI data to/from your computer.
-
Line Outputs 1-10 - Neutrik® 1/4" jack (TS or TRS) sockets to connect your Scarlett to line-level inputs on devices such as monitor speakers, amplifiers, mixers or external processors. Use 1/4" TRS jack cables for balanced connections where possible.
-
Line Outputs A (1/2) and B (3/4) - two pairs of Neutrik® 1/4" jack (TS or TRS) sockets designed to connect your Scarlett to two pairs of monitor speakers (pair A and pair B) so you can switch between sets using the front panel Alt button.
-
Inputs 1-8 - Neutrik® Combo XLR and 6.35mm (1/4") jack connectors. They accept XLR mic-level inputs, or unbalanced mono (TS) and balanced Mono (TRS) 1/4" jack cables at line level.
Note Inputs 1/2 are duplicated on the back, anything connected to front panel inputs 1 and 2 will take priority over the back panel inputs.
This section covers all the features on your Scarlett 18i20's front panel, what they do, how you might use them, and how they work in Focusrite Control 2.
The preamp input gain controls how much signal you are sending into your computer and recording software.
It's essential to set a good level for the preamp input gain so you get the best quality recording. If the preamp input gain is too low, your signal will be too quiet and when you try to boost its level later you may hear noise in the recording; if the preamp input gain is too high you might 'clip' the input and hear harsh distortion in your recording.
To adjust the preamp input gain on your Scarlett 18i20 you first need to select the preamp you would like to adjust. Press the corresponding select button (1-8). The Input gain control now controls the preamp you selected.

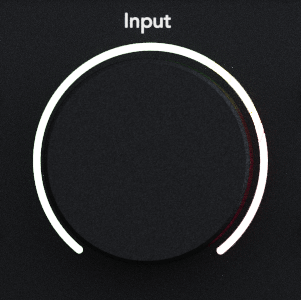

To increase the input gain, turn the gain control clockwise. As you move the gain control, the Gain Halo gradually lights clockwise to show you the gain level. This diagram shows the gain at various levels:
-
No input gain
-
25% input gain
-
50% input gain
-
75% input gain
-
100% input gain
You can also control the preamp gain remotely using Focusrite Control 2.
To adjust the preamp gain in Focusrite Control 2:
-
Click the virtual knob for the channel you'd like to adjust or use the tab key to select the preamp gain control.
-
Move your mouse up and down or use the arrow keys to increase or decrease the gain (in ±1dB increments).

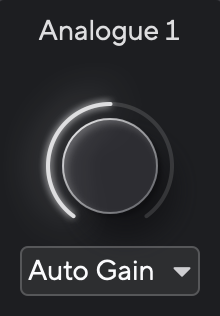

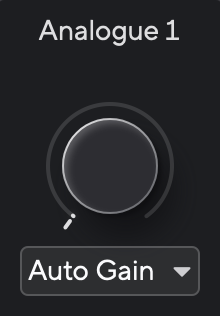

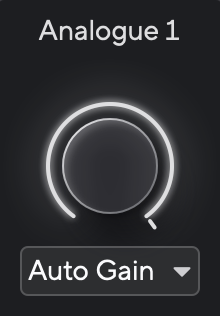

The following images show the preamp gain at minimum, medium and maximum gain.
No input gain |
50% Gain |
100% Gain |

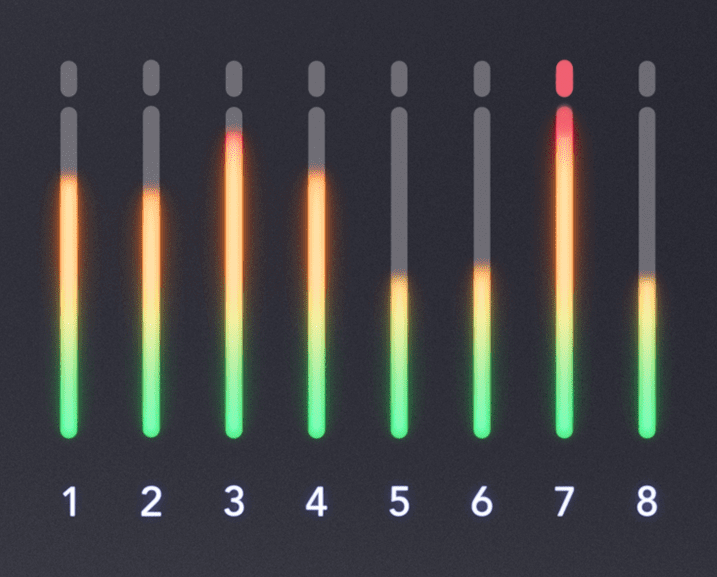

The meters 1 -8 show the input level of each of your Scarlett 18i20's input channels.
As you increase the preamp input gain for a channel, or as the source gets louder the meters will show more level coming into your computer.
On the far right of the meters, there's a scale from -42dBFS to 0dBFS. When you're recording it's a good idea to have a signal level around -18dBFS with the loudest parts of the signal reaching -12dBFS.
Tip
If your signal clips the clip indicator at the top of the meter lights red. If this happens, select that channel and reduce the gain.
Many front panel controls on your Scarlett 18i20 are shared across the preamp inputs. The select buttons, labelled 1 to 8 move the preamp controls to different inputs.

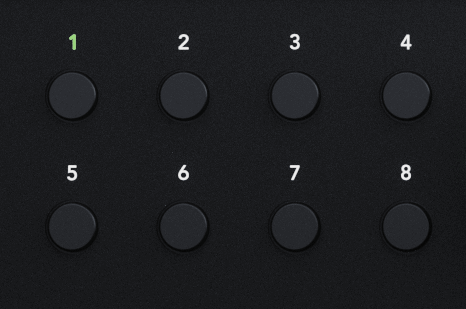

At least one preamp is always selected, to change which preamp(s) the controls are affecting, press one of the buttons labelled 1 to 8. When you do this, the newly selected preamp's number lights green and the preamp setting lights change to match the new preamp.
When you turn on your Scarlett 18i20 the last selected preamp before you turned it off remains the selected preamp.
Note
When you link two inputs, the Select button treats them as one. Pressing Select moves to the next input or linked pair.
Linking preamps allows you to control two preamps simultaneously using one set of preamp controls. You can match gain controls for two preamps and enable other preamp controls. This is useful for stereo recording, for example, a microphone pair, stereo synthesiser, or keyboard.
Note
You can only link adjacent preamps with the left channel set as odd-numbered input channels, e.g. you can link input channels 1 and 2, or 3 and 4, but not 2 and 3.
To link preamps:
-
Press the select button (1-8) to choose one side of the pair.
-
Press the Link button to link the preamps.
When you've made the preamp Link:
-

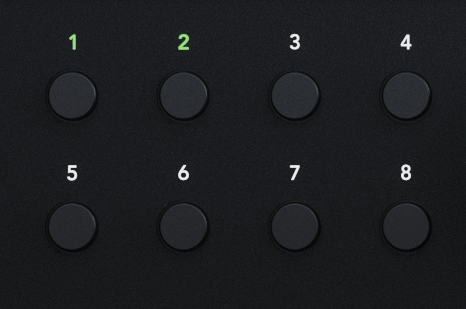

Both preamp numbers light green when you select that pair.
-
The preamp gain level is set to the lowest value of the newly linked pair.
-
The preamp settings are inherited from the currently selected preamp, e.g. preamp 1 is selected, therefore preamp 2 inherits, Air, Safe and Inst settings from Preamp 1.
-
Changing any preamp setting changes the state of both preamps.
-
Adjusting either gain control changes the gain level for both preamps and is shown on both Gain Halos.
-
48V is disabled for both preamps.
To link preamps from Focusrite Control 2, click the link icon at the top of the channel strip .
When you link two preamps, the link icon turns green , one set of preamp controls disappears, and the meters for each channel merge to form a stereo meter.
Two unlinked channels. |
Linked channels with merged preamp controls. |
To unlink preamps from Focusrite Control 2 and control them independently again, click the green link icon at the top of the channel strip.
When you unlink two preamps, the link icon returns to black/white , two sets of preamp controls appear, and the meters split again for each separate channel.
When you unlink preamps:
-
The first preamp of the previously linked pair becomes selected and lights green.
-
Gain levels and preamp settings stay the same, but you can now change them independently.
48V, also commonly referred to as 'Phantom Power', sends 48 Volts from your interface's XLR connector to devices needing power to work. The most common use is sending power to condenser microphones, but you may also need 48V for inline mic preamps, active dynamic microphones and active DI boxes.
To turn on 48V:
-
Connect your microphone, or another powered device, to an XLR input on your interface using an XLR cable. 48V is not sent to the 6.35mm (1/4") jack inputs.
-
Select the correct input channel.
-
Press the 48V button (or the corresponding software button)
The 48V icon lights green to show it is enabled.
48V phantom power is now being sent to the selected XLR input and to any devices connected to the XLR input.
Note
If you activate 48V for inputs 1 or 2 then plug a 6.35mm (1/4”) jack into the line-level or instrument input on the front panel, your Scarlett 18i20 automatically disables 48V for the corresponding rear microphone input.
To enable 48V (Phantom Power) from Focusrite Control 2 click the button for the input you want to enable it on. This is the same as pressing the 48V button on the Scarlett 18i20 hardware.
Phantom Power off |
Phantom Power on |
Important
If you accidentally send 48V phantom power to the wrong input, most modern microphones of other types, e.g., dynamic or ribbon, will not be damaged, but some older microphones may be. If you're unsure, please check your microphone's user guide to ensure it is safe to use with 48V phantom power.
Inst, or instrument, changes the impedance and input level of the 6.35mm (1/4") jack inputs on your Scarlett so the inputs sound their best for either an instrument or line-level source. We list the input impedance values in the Specifications section. If you don't turn on Inst and connect an electric guitar, the resulting sound can be muddy and quiet compared to with Inst on.
The Inst (Instrument) button only affects the 6.35mm (1/4") line input for the selected channel, either input 1 or input 2. It changes it from an input suitable for line-level devices to an input better suited for instrument-level devices.
To enable, or disable, instrument mode for the 6.35mm (1/4") jack input, select the channel and press the Inst button once. Green shows Inst is enabled, and white shows Inst is disabled. When you enable Inst and connect a jack to your Scarlett, the minimum gain for the input is changed to +7dB.
Note
When the Inst light is white, the 6.35mm jack input is at line level.
When Inst is enabled (green) you can connect instrument-level devices to the 1/4" inputs such as, but not limited to:
-
Electric or electro-acoustic guitars directly and via effects pedals.
-
Electric basses
-
Acoustic instruments with pick-ups such as violins, double basses etc.
When Inst is disabled (white) you can connect line-level devices to the 6.35mm (1/4") inputs such as, but not limited to:
-
Synthesisers
-
Keyboards
-
Drum Machines
-
External Microphone Preamps
Note
The XLR and 6.35mm (1/4") jack inputs 1 and 2 on the front panel of your Scarlett 18i20 take priority over the corresponding mic/line inputs on the back panel.
If you have no signal from something connected to rear inputs 1 and 2, check if you have something connected to front inputs 1 and 2.
If you activate 48V for inputs 1 or 2 then plug a 6.35mm (1/4”) jack into the line-level or instrument input on the front panel, your Scarlett 18i20 automatically disables 48V for the corresponding rear microphone input.
To change inputs 1 or 2 between instrument and line from Focusrite Control 2 click the Inst button once.
Line |
Instrument |
Note
When you switch between Inst and Line, the gain stays at the last level you set.
Auto Gain allows you to send a signal into your Scarlett 18i20 (for example singing or playing your instrument) for 10 seconds and let the Scarlett set a good level for your preamps. If you find the levels aren't right, you can adjust the gain controls manually to fine-tune the levels before recording.
To use Auto Gain:
-
Press the Select button to move your preamp controls to the correct preamp.
-
Press the white Auto button on your Scarlett, or the corresponding software button.
The Auto icon lights green for ten seconds. The corresponding input meter turns into a ten-second countdown timer.
-
Speak or sing into the microphone, or play your instrument during the Auto Gain countdown. Perform as you would while you're recording to make sure Auto Gain sets a good level.
If the Auto Gain was successful, the Gain Halo lights green before the gain value is shown on the Gain Halo for a second. The gain is now set at a good level for your recording.
If Auto Gain fails, the Gain Halo lights red. Please see the section, The Gain Halo turned Red, for more information.
Note
Scarlett's Auto Gain makes sure your levels are set right not only using the input signal but also factors in:
-
The preamp's noise floor.
-
Digital silence.
-
Inter-channel crosstalk.
-
Unwanted knocks or bumps on your microphones.
To use Auto Gain in Focusrite Control 2:
-
Click the Auto Gain button in Focusrite Control 2.
-
Speak or sing into the microphone, or play your instrument during the Auto Gain countdown. Perform as you would while you're recording to make sure Auto Gain sets a good level.

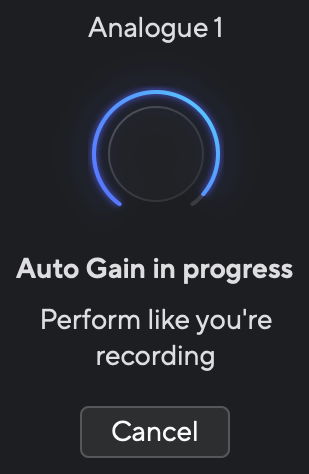

The Auto Gain process starts and the software Gain halo turns into a countdown timer.
If the Auto Gain was successful, the Gain Halo lights green before the gain value is shown on the Gain Halo for a second. The gain is now set at a good level for your recording.

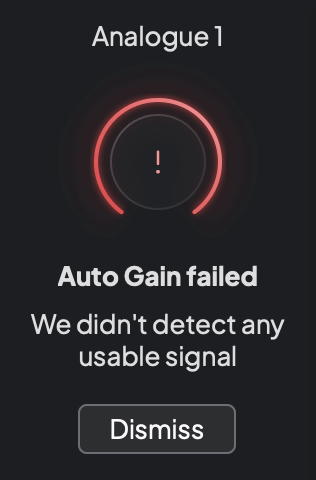

If the input signal is unsuitable for Auto Gain (for example there's no signal detected), after ten seconds, Auto Gain stops and the Gain Halo lights red for a second. The gain returns to the value you set before starting Auto Gain.
Hardware Gain Halo |
Focusrite Control 2 Auto Gain unsuccessful |
Before running Auto Gain again, make sure your input has something connected to it correctly, if you're using a condenser microphone, 48V is on, and you are making sound while Auto Gain runs.
Auto Gain allows you to send a signal into your Scarlett 18i20 (for example singing or playing your instrument) for 10 seconds and let the Scarlett set a good level for your preamps. If you find the levels aren't right, you can adjust the gain controls manually to fine-tune the levels before recording.
You can use Auto Gain on as many channels as you like on your Scarlett 18i20.
To use multichannel Auto Gain
-
Hold the Auto button for one second.
When you're in multichannel Auto Gain mode, all the Select buttons pulse green.
-
Press the Select buttons for the channels you want to run Auto Gain for.
-
When you're ready, press Auto again to start the Auto Gain process on the selected channels.
Note
To cancel Auto Gain, press the Auto Gain button again at any time during the process. The gain returns to the value you set before starting Auto Gain.

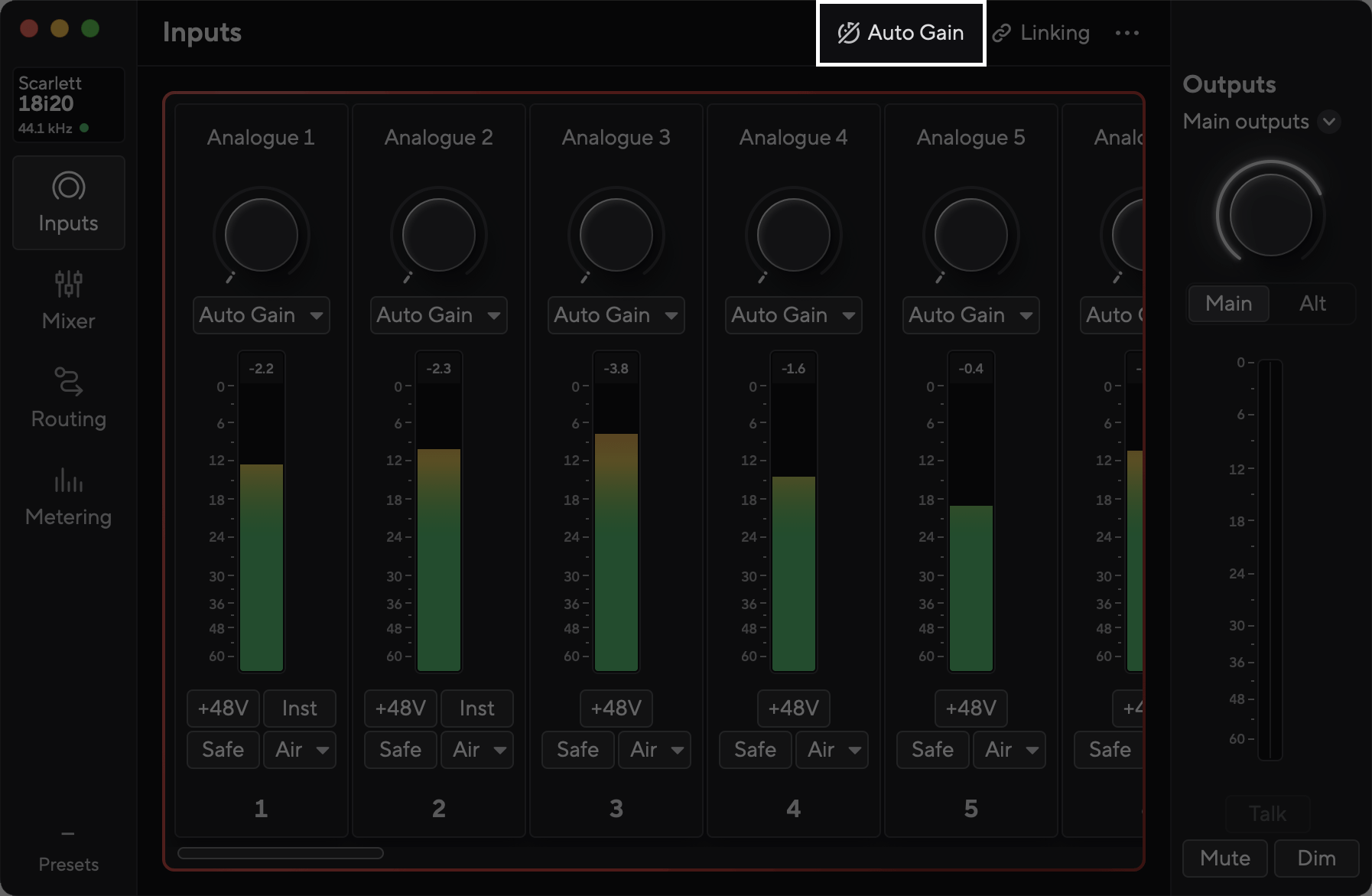

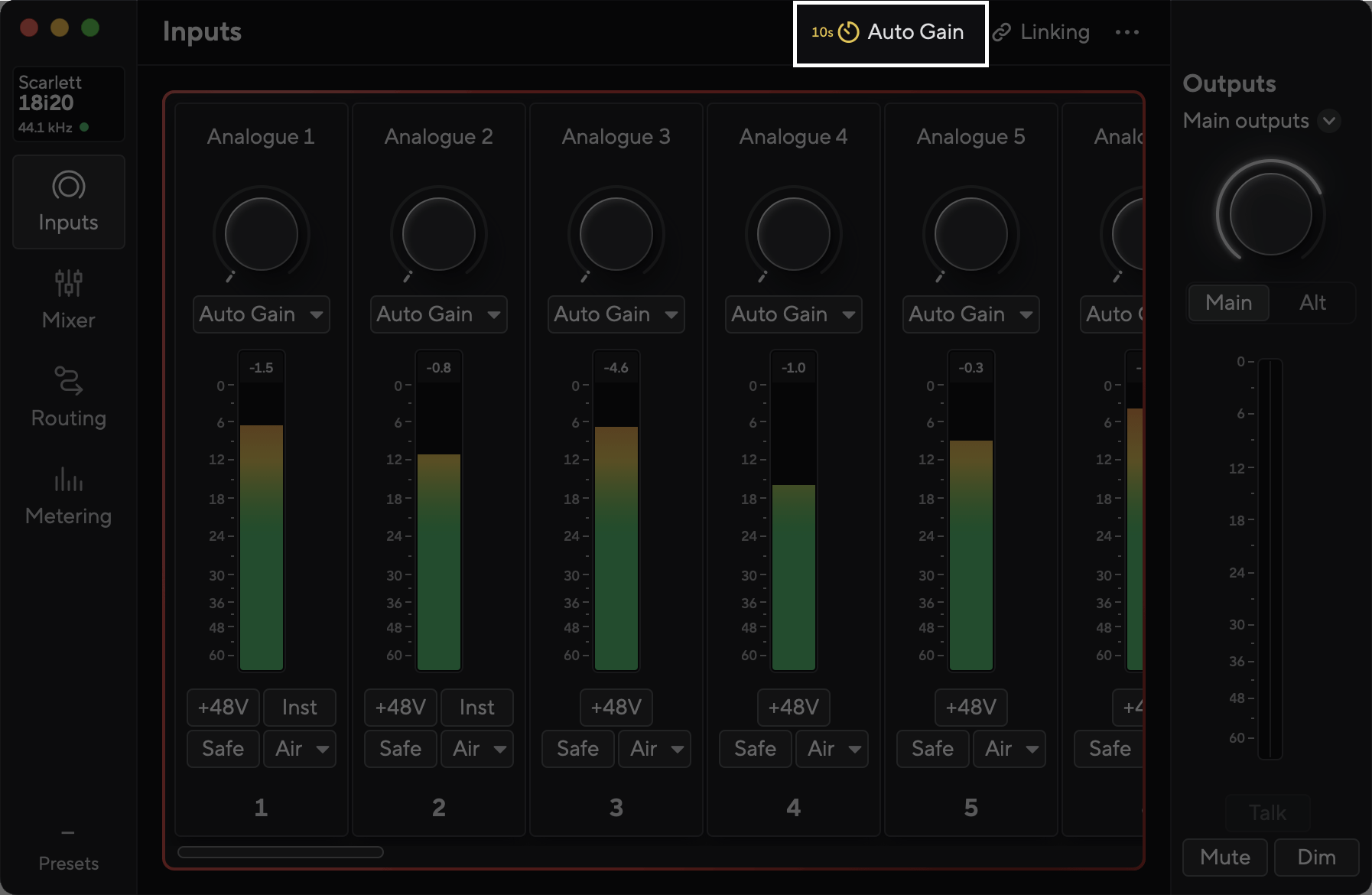

You can also run multichannel Auto Gain from within Focusrite Control 2. To do this:
-
Open Focusrite Control 2 and go to the Inputs tab.
-

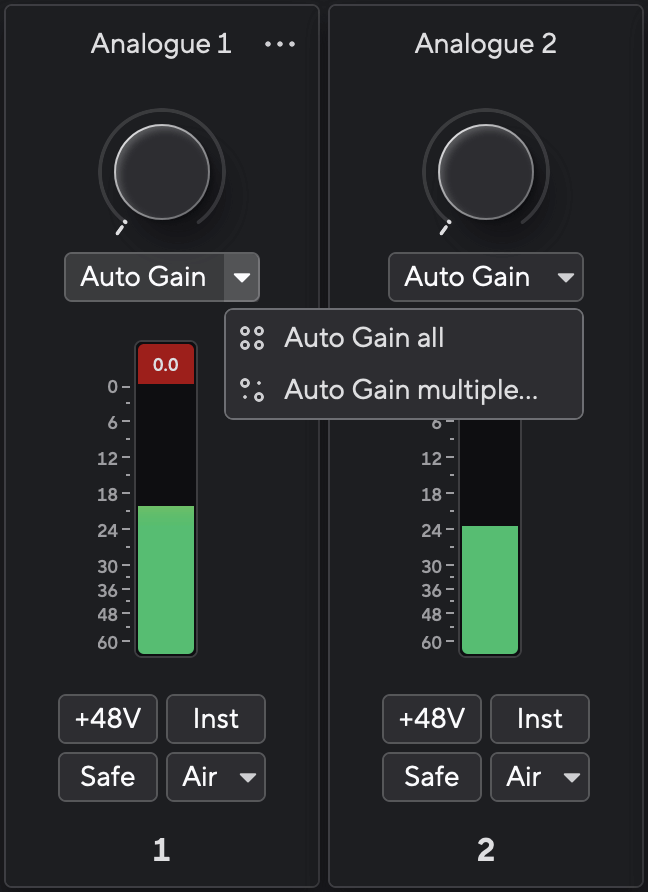

Click the dropdown arrow to the right of the usual Auto Gain button.
-
Choose or .
-
Auto Gain all starts running Auto Gain for all the channels on your Scarlett 18i20.
-
Auto Gain multiple allows you to choose the channels you want to run Auto Gain for.
-
-
If you clicked Auto Gain multiple, tick the channels you want to run Auto Gain for.
-
Click
.
Once Auto Gain has finished, Focusrite Control 2 shows the channels that have been set and their new gain levels:
All Channels |
Multiple Channels |
Multichannel Auto Gain might fail during the process for one, multiple, or all channels. If this happens, you'll see one of two messages:
If Auto Gain fails for all channels, you'll see the Auto Gain failed message. |
If Auto Gain fails for one or some channels, you'll see the Auto Gain complete message, but with the option to Auto Gain on all channels. |
You can either:
-
Click all the channels you ran Auto Gain for, even the successful channels.
and all Auto Gain runs again for -
Click close and run Auto Gain for any failed channels.
-
Click close and manually adjust the gain for any failed channels.
The Safe button applies Clip Safe, which automatically adjusts your preamp gain if you're at risk of clipping.
Clipping happens when your gain is set too high for the sound being recorded and your input overloads the preamp. A clipping symptom is preamp distortion, which is often unpleasant and can ruin a recording. Clip Safe helps you avoid this so if your input gets near to clipping, Clip Safe reduces the preamp gain, so you won't have to re-record your take.
Note
Clip Safe is only available at up to 96kHz, you cannot use it at quad-band (176.4kHz and 192 kHz) sample rates. The Safe LED lights red to show when it's unavailable.
To enable Clip Safe:
-
Press the Select button to move your preamp controls to the correct preamp.
-
Press the Safe button on the interface or the corresponding software button.
When you enable Safe, the Safe icon lights green.
When you have two inputs selected using Preamp Link, Safe is applied to both preamps.
Tip
When you enable Clip Safe, your Scarlett continuously monitors your input signals, up to 96,000 times a second, and through a combination of analogue preamp adjustment and DSP, Clip Safe significantly reduces the risk of clipping.
Air lets you change your Scarlett's preamp sound with two different modes; Air Presence or Air Presence and Harmonic Drive.
Air affects the mic, line, and instrument inputs.
To enable Air, select your input, press the Air button once for Air Presence, again for Air Presence and Harmonic Drive and again to turn off. The Air LED changes colour to show which mode you have selected:
Mode |
Description |
AIR LED |
Notes |
---|---|---|---|
Off |
The preamp is clean |
White |
|
Air Presence |
An analogue circuit gives a presence boost to your sources. |
Green |
|
Air Presence and Harmonic Drive |
Adds harmonics, in addition to the analogue Air circuit. |
Amber |
Only available at up to 96kHz |
To enable AIR from Focusrite Control 2 click the button. This is the same as pressing the button on the Scarlett 18i20 hardware.
Air Off |
Air Presence selected |
Air Presence and Drive selected |
When you click Focusrite Control 2's Air button, the last selected Air mode becomes activated. To change the selected Air mode (Presence or Presence and Drive) click the arrow to show the dropdown menu.
Air Presence selected |
Air Presence and Drive selected |
Note
Air Presence & Drive is only available at up to 96kHz, you cannot use it at quad-band (176.4kHz and 192 kHz) sample rates.

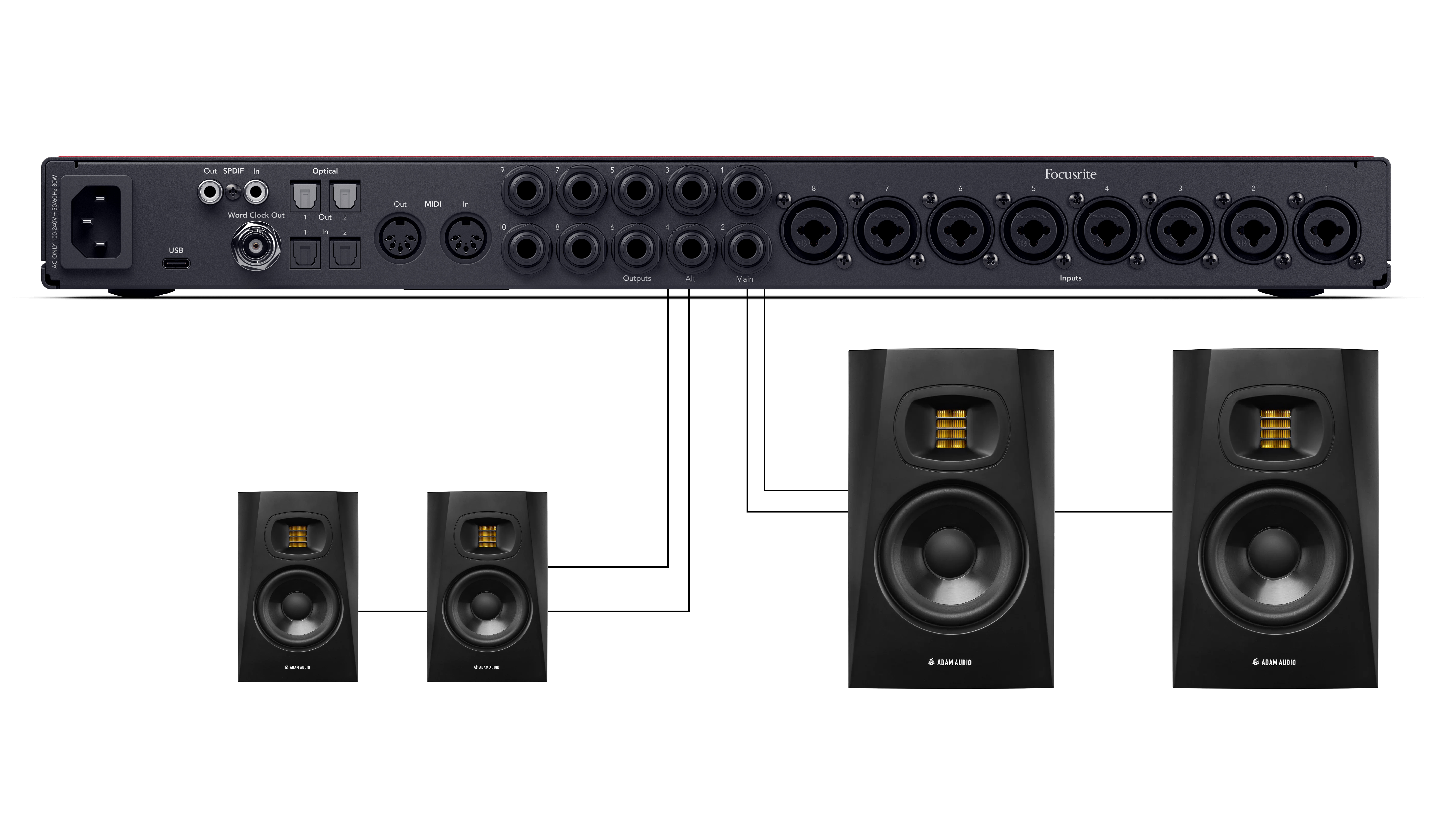

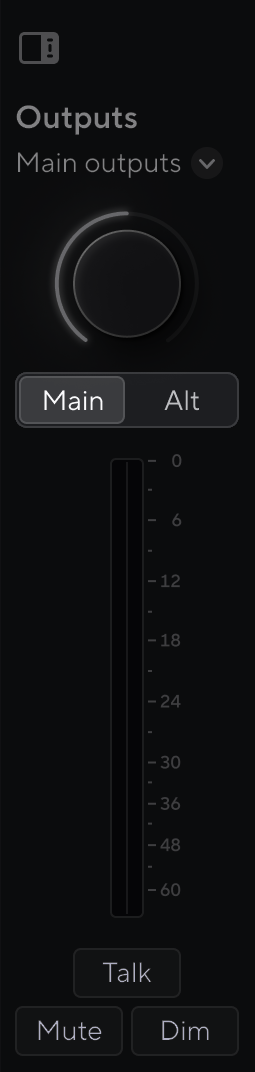

The Scarlett 18i20's Alt (alternate) button gives you the ability to alternate between two sets of monitor speakers. This is useful for referencing your mixes on a different set of speakers.
To set up the speakers for speaker switching:
-
Connect your main speakers to monitor outputs 1-2.
-
Connect your alternative speakers to monitor outputs 3-4.
-
Go to Focusrite Control 2's Routing tab.
-
Click the toggle to enable Speaker switching above the list of outputs
-
Pick the Source for the outputs.
If you're checking mixes, it's likely this should be Playback 1 - 2 as the source would be the output from your DAW.
After setting up your monitors, you can switch between your main monitors (Outputs 1-2) and the Alt monitors (Outputs 3-4) either by pressing the front panel Alt button or by clicking on the Alt button in Focusrite Control 2.
When Alt is active, the Source set for Main and Alt is sent to the Alt outputs instead of the Main outputs, and Alt lights green.
Note
When Speaker switching is on, the Output control has two volume settings, one for your Main speakers and on for your Alt speakers. Each control is independent.
When you change between Main and Alt, the level jumps to the last setting for that speaker setting, you can set the level using the Output control for each set of speakers to match their volume.
When you disable and re-enable Speaker switching, or restart your Focusrite Control 2, the Alt Output level resets to -48dBFS.
The Dim button reduces the output level being sent to your outputs by 18dB. When active, Dim lights green.
Dim off (white) |
Dim on (green) |
The Dim button is useful to help allow conversation or to try ideas in the room without stopping playback.
By default, Dim affects the Main monitor outputs 1 and 2, but in Focusrite Control 2 you can change this to control your Alt outputs.
To enable/disable Dim in Focusrite Control 2 click the button in the Outputs section on the right.
The Dim button works in the same way as the Dim button on the front panel of your Scarlett 18i20 and reduces the output level being sent to your outputs by 18dB. When active, Dim lights green.
Dim off. |
Dim on. |
The Output button changes the meters 1-8 from the inputs they are metering to pre-fade meters for the corresponding outputs. Pre-fade means the meters aren't affected by the monitor dial in the same way the L and R meters are affected by the Output dial.
When active, Output lights green.
For example, rather than the meters showing the levels of analogue inputs 1-8, when Output is active the meters show the levels for analogue outputs 1-8.
Output off (white), metering the inputs. |
Output on (green) metering the outputs. |
Tip
To assign signals to the different outputs, see the section Using the Focusrite Control 2 Routing tab.
The Mute button silences the signal being sent to your outputs. When active, Mute lights green.
Mute off (white). |
Mute on (green). |
By default, Mute affects the Main monitor outputs 1 and 2, but in Focusrite Control 2 you can change this to control your Alt outputs.
To enable/disable Mute in Focusrite Control 2 click the button in the Outputs section on the right.
The Mute button works in the same way as the Mute button on the front panel of your Scarlett 18i20. When active, Mute lights green.
Mute off. |
Mute on. |
The Output control and Output level meters are related to the signals going to the Outputs on the back of your Scarlett 18i20. The meters show the level going to your selected Monitor Outputs, either 1-2 or 3-4 when Alt is on.
The halo around the Monitor control on your Scarlett 18i20 lights white to show where the monitor control is set.
The output level meters L and R are pre-fade meters (they aren't affected by the Output control's position) showing you the signal level coming from your computer going to Outputs 1 and 2.
On the right-hand side of Focusrite Control 2 the Output section is a visual representation of the Output control and level meters.
At the top of the Outputs section, you can use the drop-down to change the outputs you're controlling.
The dial in Focusrite Control 2 is a software representation of the Output control on your Scarlett 18i20's front panel. When you change the control on the hardware, the software updates, when you move the control on the front panel, the dial in Focusrite Control 2 updates.
The Output section allows you to control the Alt, or speaker switching, function. Click or to switch between your Main or Alt monitors.
For more information, see Speaker Switching (Alt).
The output level meters mirror the front panel meters are pre-fade meters (they aren't affected by the Output control's position) showing you the signal level coming from your computer going to Outputs 1 and 2 (or 3 and 4 if you enable Alt).
The Sync Status icon on the front panel lights green when your Scarlett 18i20 is 'locked' to or 'synchronised' with a clock source.
The Sync Status indicator is most useful when you're trying to expand the channel count using your Scarlett 18i20 with other equipment connected to your Scarlett 18i20's digital inputs or outputs; the ADAT or S/PDIF IO.
Important
To pass audio, the Sync Status indicator must light green. You can do this by making your Scarlett 18i20clock leader (Internal clock) or clock follower (ADAT or S/PDIF clock) with a valid clock leader connected.
When you're using the digital inputs your Scarlett 18i20 and the other audio devices need to have their internal clocks synchronised, using clock signals, so their audio is recorded in time.
Depending on what type of digital device you're connecting to your Scarlett 18i20 (ADAT, coaxial S/PDIF, or optical S/PDIF) you need to make sure the digital IO mode is set correctly; for more information see Setting the digital IO modes - coming soon.
Tip
If your digital audio devices aren't synchronised correctly, you'll hear audible glitches, or the audio won't pass at all.
There are a few principles when you're trying to synchronise multiple digital audio devices:
-
The clock signal can be embedded into the audio signal, down the same cables (e.g. S/PDIF, or ADAT).
-
Clock signals are always one-way, you can't send and receive clock signals using one ADAT or S/PDIF cable.
-
There are Clock Leaders and Clock Followers.
Devices 'follow' other devices' clock signals. One device in your setup must be the clock leader, the other devices must be followers and receive the clock signal from the clock leader.
-
Every device with digital I/O will have an internal clock and should have the option to be a clock leader or a clock follower.
Tip
In these examples, we’ve used Focusrite products to demonstrate ADAT and S/PDIF digital expansion. But remember, ADAT and S/PDIF are universal standards. So, any device with digital ADAT or S/PDIF outputs will work with your Scarlett’s digital inputs.
This is the most basic setup and involves one expansion device, increasing the channel count of your Scarlett 18i20.
We've outlined the steps for an ADAT expansion device, but the same theory applies for S/PDIF expansion devices. Depending on which S/PDIF type you are using (coaxial or optical) you may need to change your Digital IO Mode settings in Focusrite Control 2, for more information see Setting the digital IO modes - coming soon.
Equipment:
-
An external ADAT preamp - such as a Clarett+ OctoPre.
-
One TOSLINK cable (also referred to as an ADAT cable).
Setup:
-
Connected the TOSLINK cable from the ADAT preamp's ADAT Out port to the ADAT In port on the Scarlett 18i20.
-
Set the ADAT preamp clock to Internal and your chosen sample rate.
-
In Focusrite Control 2, set the Scarlett 18i20 clock to ADAT and match the sample rate to the ADAT preamp.
-
In your DAW, set your channels to inputs 13 - 20, these are the eight ADAT inputs.
Note
The Scarlett 18i20 has two ADAT In ports. With ADAT, when you go up a sample rate band, e.g. from 44.1kHz to 88.2kHz, the number of channels the cable can send halves. This means with the Scarlett 18i20 you can use two cables to get eight channels at 88.2 and 96kHz.
To use two ADAT cables for eight channels at dual-band sample rates, set your ADAT mode to Dual in Focusrite Control 2's preferences; for more information, see Setting the digital IO modes - coming soon
This is similar to Setup 1; however, it involves more cables. It's useful if you only use your expansion device occasionally, so you'd prefer to keep your Scarlett 18i20 as your clock leader.
We've outlined the steps for an ADAT expansion device, but the same theory applies for S/PDIF expansion devices. Depending on which S/PDIF type you are using (coaxial or optical) you may need to change your Digital IO Mode settings in Focusrite Control 2, for more information see Setting the digital IO modes - coming soon.
Equipment:
-
An external ADAT preamp - such as a Clarett+ OctoPre.
-
Two TOSLINK cables (also referred to as an ADAT cable).
Setup:
-
Connected the TOSLINK cable from the ADAT preamp's ADAT Out port to the ADAT In port on the Scarlett 18i20.
-
Connect a second TOSLINK cable from the Scarlett 18i20's ADAT Out to the ADAT preamp's ADAT In.
This cable is just to send clock data, but if your ADAT preamp has outputs, you can also send signals back out of your computer to gain extra analogue outputs.
-
Set the ADAT preamp clock to ADAT and your chosen sample rate.
-
In Focusrite Control 2, set the Scarlett 18i20 clock to Internal and march the sample rate to the ADAT preamp.
-
In your DAW, set your channels to inputs 13 - 20, these are the eight ADAT inputs.
Note
The Scarlett 18i20 has two ADAT In ports. With ADAT, when you go up a sample rate band, e.g. from 44.1kHz to 88.2kHz, the number of channels the cable can send halves. This means with the Scarlett 18i20 you can use two cables to get eight channels at 88.2 and 96kHz.
To use two ADAT cables for eight channels at dual-band sample rates, set your ADAT mode to Dual in Focusrite Control 2's preferences; for more information, see Setting the digital IO modes - coming soon
In this setup, we’re using two expansion devices: an ADAT device and an S/PDIF device. For ADAT, you might use a preamp like an OctoPre or a mic preamp. For S/PDIF, you could connect another interface in standalone mode or a guitar amp modeller.
Using the Scarlett 18i20 as your clock leader is useful if you only use your expansion devices occasionally, so don't need to turn them on every time you use your Scarlett 18i20.
Equipment:
-
An external ADAT preamp - such as a Clarett+ OctoPre.
-
A S/PDIF device - such as a guitar amp.
-
Two ADAT cables.
-
Two S/PDIF cables.
Setup:
-
Connected the TOSLINK cable from the ADAT preamp's ADAT Out port to the ADAT In port on the Scarlett 18i20.
Connect the S/PDIF cable from the S/PDIF device's S/PDIF Out to the S/PDIF In on the Scarlett 18i20.
-
Connect a second TOSLINK cable from the Scarlett 18i20's ADAT Out to the ADAT preamp's ADAT In.
Connect a second S/PDIF cable from the Scarlett 18i20's S/PDIF Out to the S/PDIF device's S/PDIF In.
-
Set the S/PDIF preamp clock to S/PDIF and your chosen sample rate. Some S/PDIF devices don't allow you to change these settings, if this is the case, see ….
-
Set the Scarlett 18i20's clock to internal and match the sample rate.
-
Set the ADAT preamp to clock to ADAT and match the sample rate (it's getting its clock from the Scarlett 18i20 via the second ADAT cable).
Note
At dual-band sample rates (88.2kHz and 96kHz) it's only possible to get the following configurations using two devices:
-
Two coaxial S/PDIF channels and four ADAT channels
-
Two optical S/PDIF channels and four ADAT channels
-
Eight ADAT channels
At all sample rates, it is not possible to use coaxial S/PDIF and both ADAT ports simultaneously. See the Scarlett 18i20 input channel order for more information on the possible input combinations.
Press and hold Talk button to activate talkback. When active, Talk lights green, and the talkback microphone is routed to the outputs of your choice. By default, talkback routes to the two headphone outputs.
When you enable Talk, the rest of the outputs in the mix dim, by 25dB, to make it easier to hear the talkback microphone.
You can change the Talkback routing in Focusrite Control 2 to feed any combination of mixes.
By default, the Talk button is ‘momentary’ – talkback is only active while you hold the button. You can change the Talkback button between momentary or latching from Focusrite Control 2.
The software talkback button can be either momentary or latching.
Click and hold the Talk button to activate momentary talkback. Click the Talk button for latching control.
Using Focusrite Control 2 you can pick which mix you're sending your talkback input to.
Your Scarlett 18i20 has two headphones outputs. Both headphones outputs are completely independent of the other analogue outputs, so they can have their own dedicated mix.
The headphone outputs are 6.35mm (¼”) TRS jacks. Many headphones have a 3.5mm TRS jack, to connect them to your Scarlett 18i20 you must use a TRS 6.35mm to 3.5mm adaptor.
The controls above the headphone outputs control the level going to your headphones.
Around the headphone controls are halo meters. These fill up clockwise, from green to amber, to show the level going to your headphone outputs. The meters are pre-fade, meaning they are not affected by the headphone control setting.
The headphones output controls are encoders so you can control the level either from the dial, or in Focusrite Control 2.
Note
Some headphones and jack adaptors may have TS or TRRS connectors, often due to built-in microphones or volume controls. These might not work properly. If you encounter issues, use headphones and a jack adaptor with TRS connectors.
You can assign any sources to your headphones, either using a Mix for an independent combination of hardware inputs (direct monitoring) and software playback channels, or directly routing a source, for example Software Playback 1-2.
To set up your headphone routing:
-
Open Focusrite Control 2.
-
Go to the Routing tab.
-
Find your headphones output in the Output list.
-
Click the corresponding Source dropdown and choose the source or mix you want to send to your headphones
The mix you've created is now being sent to the headphones output you selected. You can control the overall level using the headphones control on the Scarlett or in software. You can control different parts of the mix using the Mix in Focusrite Control 2.
This section covers all the features on your Scarlett 18i20's back panel, what they do, how you might use them and how they work in Focusrite Control 2.
The USB Type-C port labelled USB is to connect your Scarlett to your computer.
Use the included USB-C cable to connect to a USB-C port on your computer, or use the USB-C to A adaptor to connect to a USB-A port on your computer.
The S/PDIF ports give you two channels of digital I/O to connect to other audio equipment with S/PDIF I/O such as guitar amps, mic preamps or any device with an S/PDIF output.
Note
The S/PDIF ports are coaxial RCA, and we recommend you use 75Ω cables. However, shorter, normal RCA cables should work.
There are many ways to connect and clock your Scarlett 18i20 when you're using an external device connected via S/PDIF. For information on clocking and digital IO setups, please see the Sync Status Indicator section.
The Sync Status Indicator on your Scarlett 18i20 should light green. When you send audio from the external device to your Scarlett 18i20 you should see the S/PDIF channels coming in on channels 11-12.
The Scarlett 18i20's Word Clock output is there so you can send clock signals to external devices connected via ADAT or S/PDIF. The main reason for using this output is if your external ADAT or S/PDIF devices don't have the relevant clocking options, but may have a Word Clock input.
The word clock output doesn't carry any audio, it sends only clock signals.
The Scarlett 18i20 only has a Word Clock output, so it cannot receive Word Clock. You must connect to the Word Clock input on any external device.
The Optical connections on the back of your Scarlett 18i20 allow you to connect external devices digitally to expand the channel count of your Scarlett 18i20.
Note
You Scarlett 18i20 disables the optical inputs and outputs at quad-band sample rates (176.4/192 kHz.)
The Scarlett 18i20 MIDI In and Out ports allow you to use your Scarlett as a USB MIDI interface. MIDI IN receives MIDI signals from keyboards or controllers; MIDI OUT sends MIDI information to Synths, Drum machines or MIDI-controllable equipment.
Important
When you first receive your Scarlett 18i20, MIDI is disabled because it is in Easy Start mode. To enable MIDI, install and open Focusrite Control 2.
The MIDI IO doesn't require any setup for you to use your Scarlett 18i20 as a USB MIDI interface. The Scarlett 18i20's MIDI ports appear in your MIDI-enabled software, and you can either send or receive MIDI data between your computer and MIDI hardware via the Scarlett's 5-pin DIN MIDI ports.
Note
The MIDI Out port on your Scarlett 18i20 cannot function as a MIDI Thru port.
Outputs 1 and 2 are line-level outputs to connect your Scarlett 18i20 to an amplifier or active monitors. The outputs are balanced 1/4" TRS jack outputs, you can use them with either unbalanced TS or balanced TRS jack cables and connect to speakers with 1/4" jack, RCA or XLR inputs.
Your Scarlett 18i20's front panel Output dial controls the level sent to Outputs 1 and 2.
Note
It is possible to use unbalanced connections, like TS 6.35mm jacks or jack to RCA cables– but we wouldn't recommend it. Using unbalanced connections, may mean you hear interference through your monitors.
If you hear a static, crackling or any other noise in your monitors, even when sounds not playing, make sure you're using balanced connections where you can.
Line Outputs 5-10 have identical electrical characteristics to the Monitor line Outputs 1 to 2 but aren't controlled by the Output control.
You can set the signals available at these outputs using Focusrite Control 2, and use the outputs to drive additional speakers in a multichannel monitoring system, such as a subwoofer or to send signals to outboard effects processors.
The 3-pin XLR Input connectors are designed to accept at microphone level signals.
You can control your microphone level using the corresponding input gain control on the front panel. 48V phantom power is also available if you are using a condenser mic, you can enable phantom power using the front panel 48V button.
You can enable 48V phantom power on a per-channel basis.
