Vocaster Hub’s layout varies depending on which Vocaster interface you connect to your computer.
While the layout is different, how each section of Vocaster Hub works is the same. The following diagrams show the layouts for Vocaster One and Vocaster Two.
For the rest of this user guide, we’ll use screenshots with a Vocaster Two connected and tell you when the features are Vocaster Two only.
|

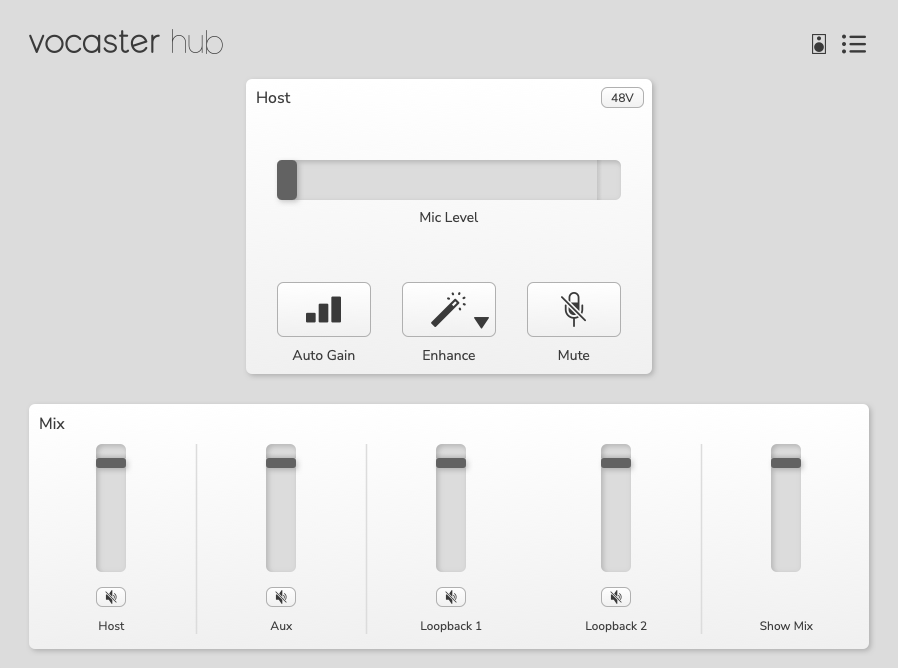

Vocaster One |

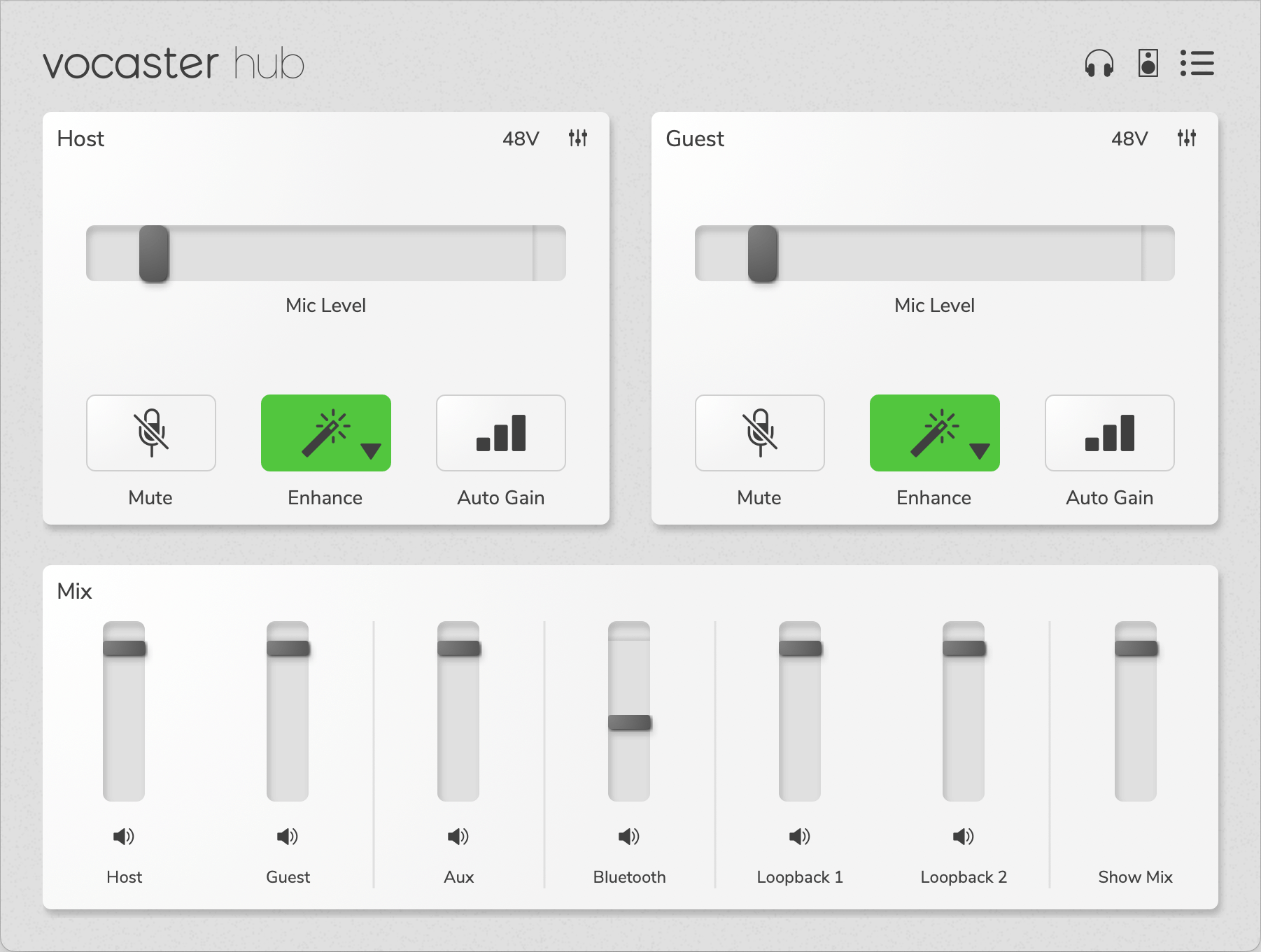

Vocaster Two |
-

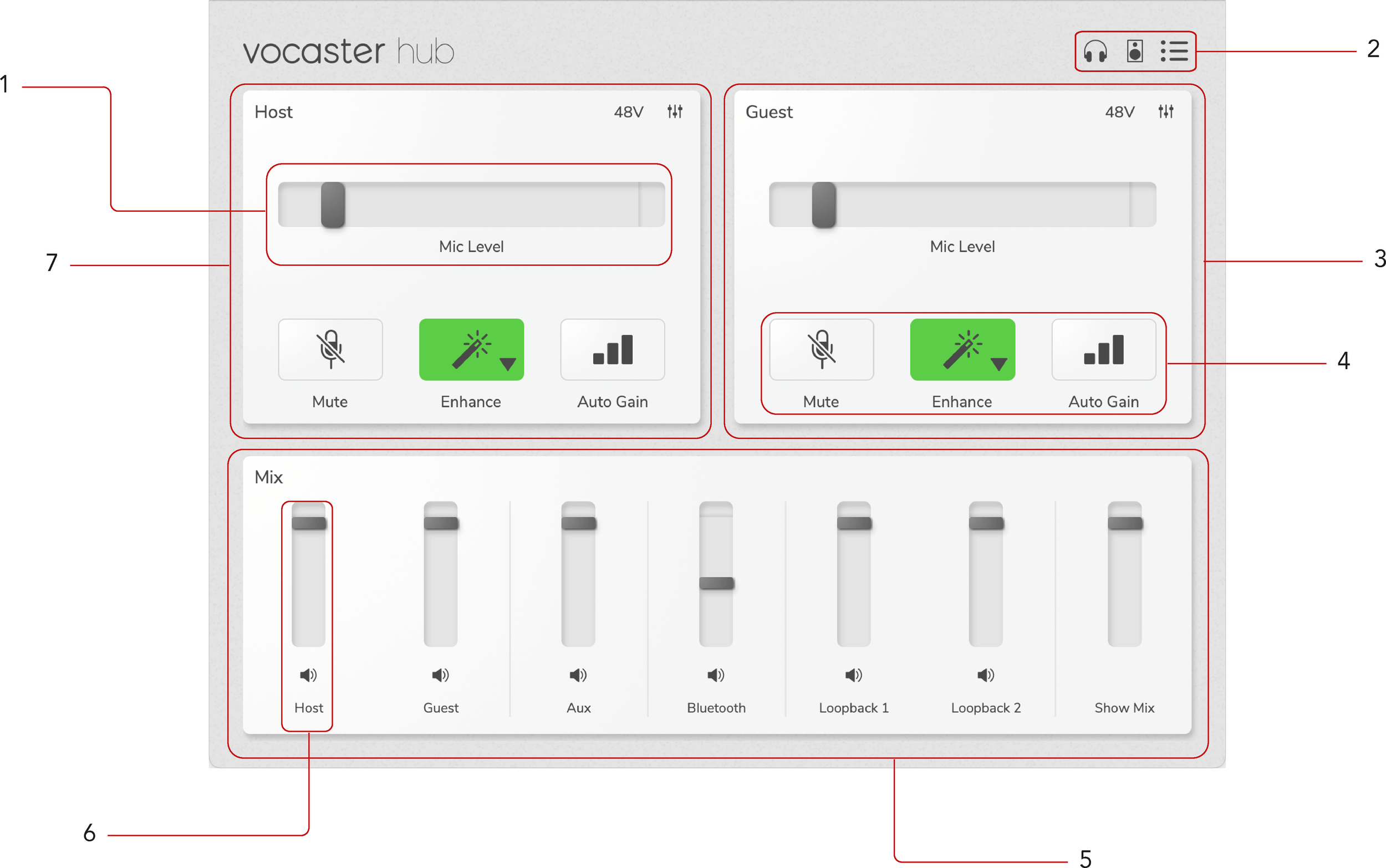

Slider, Meter and Clip Indicator. See Microphone Input Controls.
-
See Speaker Mute , Headphones Mute and Settings Page.
-
Guest Input
-
Mute, Enhance and Auto Gain. See Microphone Input Controls
-
The Mix section. See The Mix Section.
-
A Mixer Channel. See The Mix Section.
-
Host Input
