RedNet A16R MkII performance and specifications

0 dBFS Reference Level

+18 or +24 dBu (switchable)

Level trim range

Mute, then -78 dB to 0 dB in 1 dB steps (per channel)

Frequency Response

20 Hz – 20 kHz ± 0.1 dB

THD+N

<-105 dB (0.00056%) unweighted, 20 Hz – 20 kHz; -1 dBFS input

EIN

-95 dBu ‘A’-Weighted (typical)

Signal-to-Noise Ratio

119 dB ‘A’-Weighted (typical)

Converter Dynamic Range

120 dB ‘A’-Weighted (typical), 10 Hz – 20 kHz

0 dBFS Reference Level

+24 or +18 dBu switchable

Level trim range

Mute, then -78 dB to 0 dB in 1 dB steps (per channel)

Frequency Response

20 Hz – 20 kHz ± 0.1 dB

THD+N

<-100 dB (0.001%) unweighted, 20 Hz – 20 kHz, +23 dBu input

Noise in Presence of Signal

-94 dBu ‘A’-Weighted (typical)

Dynamic Range

118 dB ‘A’-Weighted (typical)

Converter Dynamic Range

120 dB ‘A’-Weighted (typical), 10 Hz – 20 kHz

Input to Output or Input

<-100 dB unweighted, 20 Hz – 20 kHz; +23 dBu input

Output or Input to Output

<-100 dB unweighted, 20 Hz – 20 kHz; -1 dBFS input

Sample Rate Range

32 to 216 kHz

Gain Error

-0.3 dB

Dynamic Range

> 138 dB

THD+N

< -130 dB (0.00003%)

Latency

11 to 45 samples (network and input sample rate dependent)

Supported Sample Rates

44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit

Clock Sources

Internal, Word Clock, DARS or from Dante Network Leader

External Word Clock Range

Nominal sample rate ±7.5%

Analogue Audio

Channel Count

16 channels input and output

Input and Output

4 x DB25 female connectors (AES59 / Tascam Analogue)

AES3

Channel Count

2 channels input and output

Alternate Input (optional DARS)

1 x XLR-3 female [Switchable with analogue input channels 15 and 16 at quad rates]

Alternate Output

1 x XLR-3 male [Duplicate of analogue output channels 15 and 16 at quad rates]

Word Clock

Input

1 x BNC 75 Ω port (switchable termination)

Output

1 x BNC 75 Ω port

PSU and Network

PSU

2 x IEC Inputs with retaining clips

Network

2 x etherCON NE8FBH, also compatible with standard RJ45 connectors (Accommodates rugged etherCON NE8MC* – Does not mate with Cat 6 cable connector NE8MC6-MO and NKE65* cable)

Primary PSU (A)

Green LED. Illuminates when an AC input is applied and all DC outputs are present

Primary PSU (B)

Green LED. Illuminates when an AC input is applied and all DC outputs are present

Primary Network

Green LED. Indicates that a network connection is present on primary port when in redundant mode. When in Switched mode, a valid network connection at either Primary or Secondary network port will cause this LED to illuminate

Secondary Network

Green LED. Indicates that a network connection is present on secondary port when in redundant mode. Not used in switched mode

Network Locked

Green LED. When unit is network follower, shows valid network lock. When network leader shows unit is locked to indicated clock source.

Sample rate

Orange LED for each: 44.1 kHz, 48 kHz, x2, x4

Pull Up/Down

Orange LED. Indicates unit is set to operate on a Dante pull up/down domain

Channel Signal Level

16 Input and 16 Output tri-state signal level LEDs: green (&gt;-42dB), orange (&gt;-6dB), red (0 dB).

AES3

Green LEDs: input &amp; output signal present indicators. Illuminate at &gt;-127 dBFS

Clock Source

Orange LED for each: Internal, Word Clock, DARS

Redundant

Allows unit to connect to two independent networks

Switched

Connects both ports to integrated network switch allowing daisy-chaining of devices

PSUs

2 x Internal, 100-240 V, 50/60 Hz, consumption 30 W

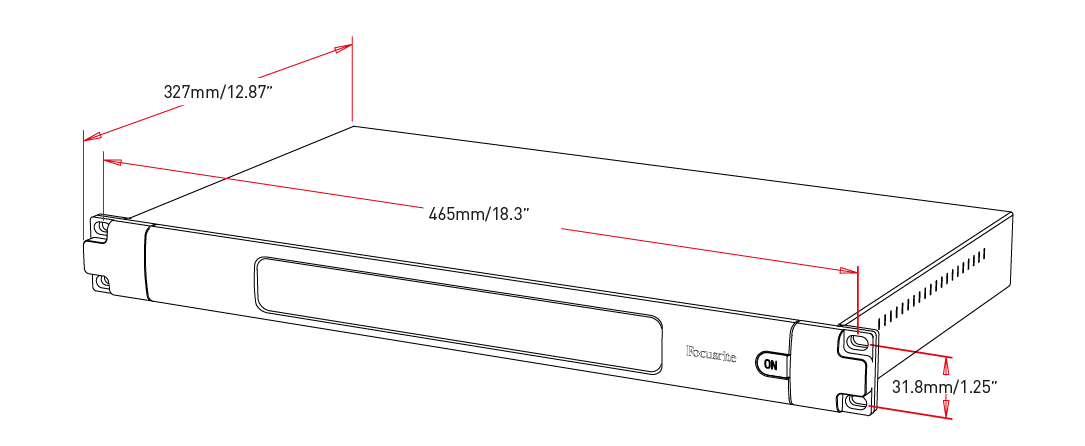

Environmental

Maximum ambient operating temperature 50°C. Cooling by two-stage fan assistance
